Kusto-Mice: Optimizing Kusto joins

A few weeks ago I wrestled with a complex Kusto query. I shared what I learned at work in a presentation. In this blog, I'll use a public example to walk you through it.

What Are We Gonna Learn Here Today?

Moved to the top:

  • joins:
    • The left side should be smaller.
    • Apply predicates before joining on both sides.
    • Use broadcast for cross-cluster queries.
    • Ditch join and use a predicate if one side is a single column.
  • Result size:
    • Project only the columns you need.
    • Use summarize to deduplicate the results.

What's Kusto?

Kusto, or Azure Data Explorer (ADX), is a distributed database. Honestly, everyone calls it Kusto. It uses a language called Kusto Query Language or KQL. Kusto is popular for threat hunting in Azure because, well, everything at Azure and subsequently at Microsoft ends up in a Kusto database somewhere.

Microsoft is three Kusto clusters in a trench coat. Image credit: Unknown Microsoft is three Kusto clusters in a trench coat. Image credit: Unknown 1

I use join a lot, and it's probably one of the most expensive operators. It retrieves data from multiple tables and combines them. For this example, we'll use the web interface and the sample databases https://dataexplorer.azure.com/clusters/help/databases/Samples. At work, I use the Kusto Explorer desktop app.

In the rest of the examples, I assume the web interface has automatically selected the Samples database on the left side. If it hasn't, and you're using multiple clusters, add the following (don't forget the . at the end) to the beginning of the queries: cluster('help.kusto.windows.net').database('Samples').

Sample Tables

We'll use the StormEvents and PopulationData tables. To join them, we need one or more columns with matching data. I usually start with take 5 to take a peak:

StormEvents
| take 5

PopulationData
| take 5

Note that an empty line starts a new query in both Kusto Explorer and the ADX web interface. You can have multiple queries in one window and run them individually.

A pet peeve of mine is hitting F5 in the web interface, which refreshes the page instead of running the query like it does in the desktop app.

Both tables have a State column, so we can join them like this:

StormEvents
| join kind=inner(PopulationData) on State

Or, for different column names, we'd use $left and $right:

StormEvents
| join kind=inner(PopulationData) on $left.State == $right.OtherState

I mostly use inner join. See all join modes in Kusto docs - join operator. We'll filter to only data with matching states, as StormEvents includes locations like Atlantic North or Gulf of Mexico (gets hauled away in an unmarked van).

In this case we get 57,714 rows, but in the real world I am usually dealing with millions of rows and I hit the cluster limitations.

Errors

After running a Kusto query, I usually see one of these errors:

  1. Timeout: Query execution exceeds a specific limit (usually a few minutes).
  2. E_RUNAWAY_QUERY: Query uses too much memory (usually a few GBs).
  3. E_QUERY_RESULT_SET_TOO_LARGE: Result set is too big (64MB in my case).

Read more in Kusto docs - Query Limits.

The banes of my Kusto queries The banes of my Kusto queries

Avoiding E_RUNAWAY_QUERY

Joins often run out of memory due to excessive data matching. So our focus should be on reducing both sides of the join before it happens. To quote Super Troopers, "Enhance!"

You can monitor query memory usage and result size in both the web interface and Kusto Explorer. In the web interface, click the Stats tab.

Note on performance: This isn't a scientific experiment. Due to warm-up, caching, and other optimizations, measuring query performance can be challenging. These tables are small, so the differences might be subtle, but they were dramatic in my query.

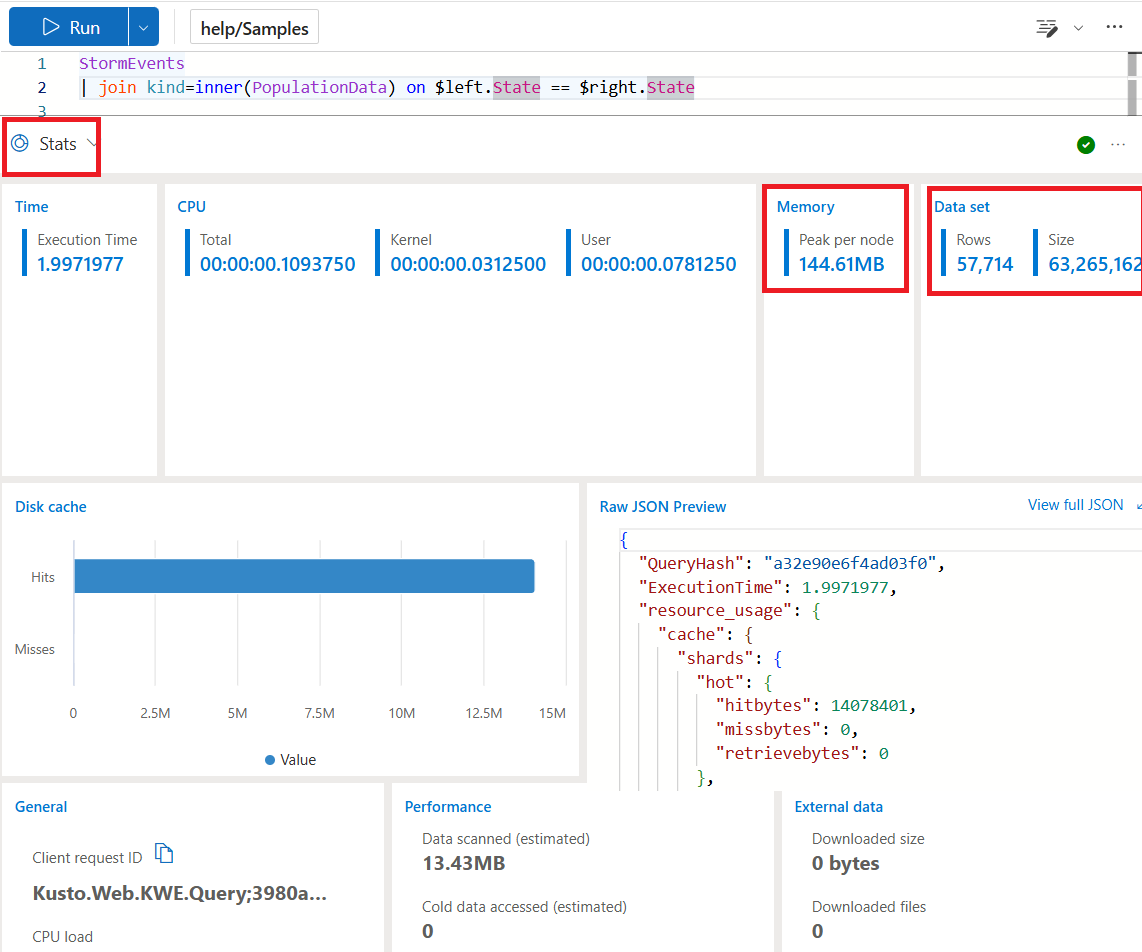

Performance of the original query Performance of the original query

join: Use the Smaller Table First

The smaller table should be first. PopulationData only has 52 rows (50 states, PR, and DC). Easy swap:

PopulationData
| join kind=inner(StormEvents) on State

To make the left side table smaller, apply all the conditions predicates before the join. For example, if we want to look at events for states with a population over 10 million, we can filter PopulationData first which leaves us with only nine states:

PopulationData
| where Population > 10000000
| join kind=inner(StormEvents) on State
  • Peak memory usage: 66MB.
  • Result: 17,037 rows. 19,336,519 bytes.

Applying predicates after the join would produce the same results with unnecessary computation matching the rows we don't care about.

PopulationData
| join kind=inner(StormEvents) on State
| where Population > 10000000
Say 'predicate' to impress your functional programming friends Say 'predicate' to impress your functional programming friends

join: Only Project the Columns You Need

To make the left side of the join as small as possible, include only needed columns. Our left side table is small, but as a rule of thumb, don't project columns with predicates unless needed. Let's remove Population:

PopulationData
| where Population > 10000000
| project State
| join kind=inner(StormEvents) on State
  • Peak memory usage: Still around 66MB.
  • Result: 17,037 rows. 19,183,186 bytes. Omitting the population column reduced it a little.

After the project line, the query only sees the State column. We can rename columns, too. If State was originally named UsState, we could rename it. Two show two ways to rename, we rename it with project-rename and then use project State = UsState.

PopulationData
| where Population > 10000000
| project-rename UsState = State
| project State = UsState
| join kind=inner(StormEvents) on State

Remember when I mentioned we can have multiple queries in one window separated by empty lines? This works nicely here for experimenting. We can copy a query, modify it and compare the results.

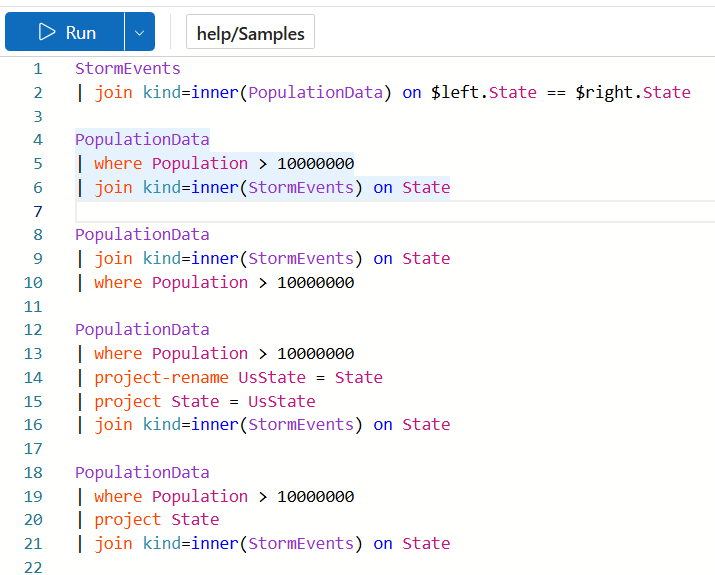

Multiple queries in one window Multiple queries in one window

join: Move Predicates into Join

A teammate who is an expert in Kusto, Barry, reviewed my presentation and shared some great tips. One suggestion was to move conditions into the join on the right side. The StormEvents table has BeginLocation and EndLocation columns. Let's filter events where these contain the word beach.

PopulationData
| where Population > 10000000
| project State
| join kind=inner(StormEvents) on State
| where (BeginLocation has 'beach') or (EndLocation has 'beach')

Move the filter into the right side:

PopulationData
| where Population > 10000000
| project State
| join kind=inner(
    StormEvents
    | where (BeginLocation has 'beach') or (EndLocation has 'beach')
) on State

where has move into the join. The fewer rows that we match on either side of the join, the better.

  • Peak memory usage: 18.15MB.
  • Results: 55 rows. 53,882 bytes.

Soapbox: has vs. contains

Using contains triggers a warning recommending has instead.

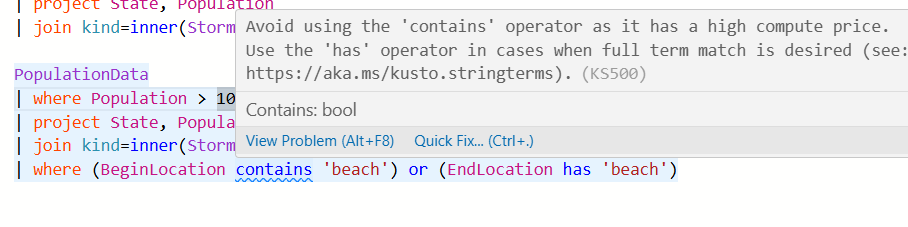

Contains has a warning (har har) Contains has a warning (har har)

has and contains are not interchangeable. has matches whole words, while contains is like a substring function. For example, given CLEARWATER BEACH:

  • Searching for beach returns true for both has and contains since it's a separate word.
  • Searching for clear returns false for has, but true for contains.

Learn more about string operators at https://aka.ms/kusto.stringterms.

print Example = "CLEARWATER BEACH"
| extend Has_beach = (Example has "beach")           // true
| extend Contains_beach = (Example contains "beach") // true
| extend Has_clear = (Example has "clear")           // false
| extend Contains_clear = (Example contains "clear") // true

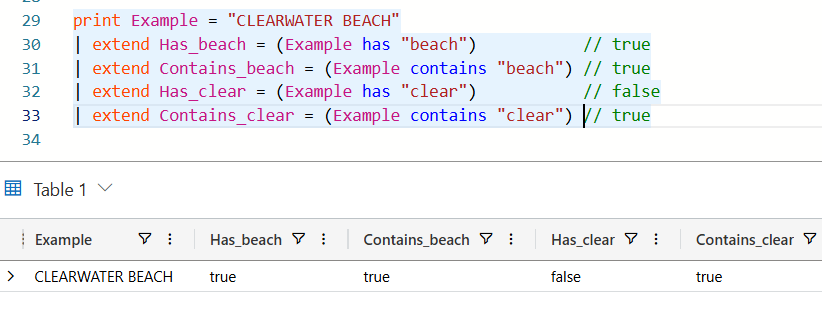

has and contains in action has and contains in action

Note both operators are case-insensitive; case-sensitive versions are has_cs and contains_cs.

join: Broadcast Strategy

Another tip from Barry.

When joining tables across clusters, a normal join is executed on a single eventhouse node, a group of databases sharing resources. While not always correct, I assume databases on the same cluster are in the same eventhouse and experiment with broadcast when joining cross-cluster tables.

The broadcast strategy distributes the join load between eventhouses. However, the left side of the join must be small, typically in the "10s of MBs".

The documentation shows us a way to guesstimate the size of tables:

PopulationData
| summarize sum(estimate_data_size(*))
// 869

Applying a predicate reduces the size:

PopulationData
| where Population > 10000000
| summarize sum(estimate_data_size(*))
// 147

Projecting only the needed column:

PopulationData
| where Population > 10000000
| project State
| summarize sum(estimate_data_size(*))
// 75

We can apply the broadcast strategy:

PopulationData
| where Population > 10000000
| project State
| join hint.strategy = broadcast kind=inner( // <--- Only change
    StormEvents
    | where (BeginLocation has 'beach') or (EndLocation has 'beach')
) on State
  • Peak memory usage: 25.93MB (interestingly, higher because of data duplication).
  • Results: 55 rows, 49,913 bytes.
    • Slightly less than the previous query due to a bug? I checked and both queries return the exact same results.

join: Codifying Queries

When working with multiple tables, queries can get complex. Kusto variables can help us here. I'll use the full cluster and database names, as we often work with multiple clusters.

let popData = cluster('help.kusto.windows.net').database('Samples').PopulationData
| where Population > 10000000
| project State;
let events = cluster('help.kusto.windows.net').database('Samples').StormEvents
| where (BeginLocation has 'beach') or (EndLocation has 'beach');
popData
| join hint.strategy = broadcast kind=inner(events) on State

This approach doesn't change peak memory usage or results, but makes the query easier to read and modify. Note that variable declarations should be consecutive, without empty lines, to be considered part of the same query.

join: One Column? Ditch Join

"But wait, there's more!"

When working with a single column, we can create a variable and use it in a predicate.

let popData = cluster('help.kusto.windows.net').database('Samples').PopulationData
| where Population > 10000000
| project State;
cluster('help.kusto.windows.net').database('Samples').StormEvents
| where (BeginLocation has 'beach') or (EndLocation has 'beach')
| where State in (popData) // <--- See here

This approach replaces the join with a more efficient in operator, significantly reducing peak memory usage.

  • Peak memory usage: 1.01MB!! (dramatic decrease).
  • Result: 55 rows, 49,526 bytes.
    • Again, results are identical to the last two queries, but the reported size is different. Maybe it includes metadata?

Avoiding E_QUERY_RESULT_SET_TOO_LARGE

When returning too much data (typically over 64MB), you might encounter the E_QUERY_RESULT_SET_TOO_LARGE error and get truncated results. To mitigate this, focus on reducing the result size.

Reducing the Result Size

One effective approach is to project only necessary columns, especially at the end of the query like we did above before the join. When hitting the result limit, I use two methods:

  1. Paginate results in multiple queries.
  2. Exclude unnecessary columns from the result.

In this example, we'll use the second solution. The StormSummary column is a JSON object with redundant data, making it a prime candidate for removal using the project-away operator.

// Example of StormSummary
{
  "TotalDamages": 6000000,
  "StartTime": "2007-02-02T04:22:00.0000000Z",
  "EndTime": "2007-02-02T04:27:00.0000000Z",
  "Details": {
    "Description": "The same mesocyclone that produced [...]",
    "Location": "FLORIDA"
  }
}

The query would look like:

let popData = cluster('help.kusto.windows.net').database('Samples').PopulationData
| where Population > 10000000
| project State;
cluster('help.kusto.windows.net').database('Samples').StormEvents
| where (BeginLocation has 'beach') or (EndLocation has 'beach')
| where State in (popData)
| project-away StormSummary
  • Peak memory usage: 1.01MB.
  • Result: 55 rows, 31,349 bytes.

Other good candidates are EpisodeNarrative and EventNarrative, which would drop the result size to 8,426 bytes.

Deduplicate

When working with regularly captured data, you might want to see only the latest instance. In our example, we have 55 rows, mostly about Florida. To get the last event for each state, we can modify the query:

let popData = cluster('help.kusto.windows.net').database('Samples').PopulationData
| where Population > 10000000
| project State;
cluster('help.kusto.windows.net').database('Samples').StormEvents
| where (BeginLocation has 'beach') or (EndLocation has 'beach')
| where State in (popData)
| summarize arg_max(EndTime, *) by State
| project-away StormSummary, EpisodeNarrative, EventNarrative

This query returns 5 rows and 985 bytes, showing only the latest event for each state.

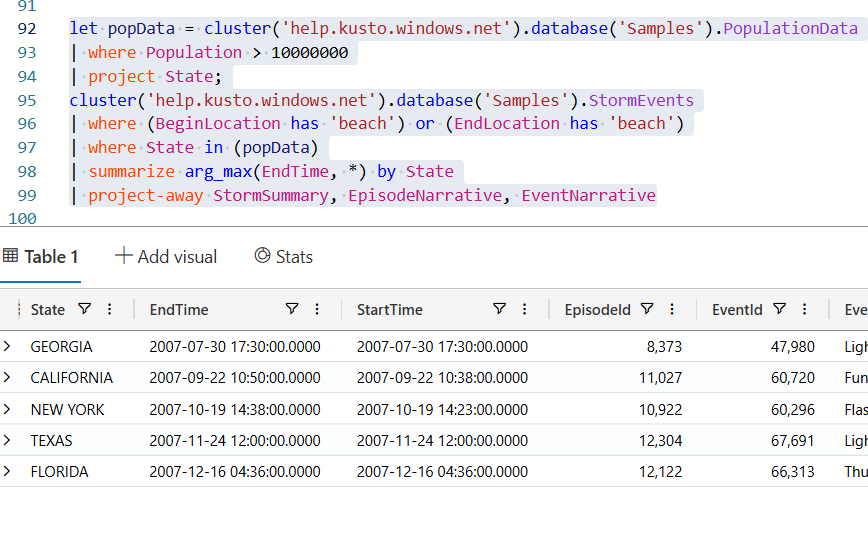

The result of the last query The result of the last query

Wrapping Up

These basic tips helped me replace a query that was running out of memory (10GB peak) and returning 200MB of data into one that finished in just 3 minutes, used 2GB of peak memory, and returned 21MB. I hope these tips will be useful for you, too.


  1. I couldn't find the original image. Please let me know if you do, so I can credit the artist (or remove it if usage isn't allowed). It's one of my favorite images. ↩︎
