The "radical" idea to add prompts and code context directly into SARIF files for AI triage.

Write the clickbait title and then immediately give away the whole thing in the preview. Pick a struggle, gurrl!

Special thanks to Krishna from Microsoft and Lewis from Semgrep for reviewing the post and giving me feedback.

Abstract

In WTF is ... - AI-Native SAST I proposed four phases of AI-Native SAST in increasing complexity:

1. Prompt + Code
2. Prompt + Agent
3. Tailored Prompt + SAST Result
4. Agent + Code Graph + SAST MCP

The last two methods work on the results of SAST tooling. AI needs code, static analysis results, tailored prompt, and context to be effective. Keeping track of these and mashing them all together is an added layer of unnecessary headache. In this blog I will explore how a SARIF file can act as the single source of truth for AI triage.

What is SARIF?

SARIF is Static Analysis Results Interchange Format. It's a format for storing static analysis results, oh wait, the name actually tells us what it does. It's a JSON file with a specific schema. Your static analysis tool should be able to output the results in this format, if not, call your vendor!

I am not going to propose modifying the SARIF format. Run-on blogs are more my thing than corporate whitepapers. So I will try to find opportunities without breaking the current specification.

What Should I Add to the SARIF File?

While I want this blog to concentrate on the how rather than the what, I will still expand a little on the Tailored Prompt + SAST Result section section of the previous blog. I propose AI triage needs this info in the SARIF file:

1. Rule context. Generated for each static analysis rule.
   1. Tailored prompt.
   2. Good and bad usage/code.
2. Code context. Generated for each individual finding.
   1. Code snippet.
   2. Code metadata.

Let's use a hypothetical static analysis rule for SSRF in C#. Usually, I start by looking for HttpClient.GetAsync and then figure out if the input can be influenced by users. Here's a Semgrep rule for it.

And I know many of you will just fixate on the contents so I will preemptively state this is just an example and your bike-shedding will fall on deaf ears. Save it for the promotion committee.

Rule Context

This is the context that explains the rule and helps AI triage the result correctly.

For our SSRF example, the tailored prompt explains what SSRF is, how HttpClient.GetAsync works, and why it might be vulnerable to SSRF if user input can influence the URI.

Good and bad code patterns can be liberated from your SAST tests. Show AI examples of true and false positives.

You do know you're using this meme format incorrectly, right?

Code Context

Code context is based on the matched code and generated independently of the rules.

Should the actual code be in the file? "Don't put the code in the file, Parsia!" said my manager. But the results of static analysis ARE also sensitive info. More importantly, they are a direct result of static analysis so access to the files likely includes access to code anyway.

But OK, be careful putting sensitive info in the magic file. Alas, yet another piece of red tape holding civilization back!

Contrary to popular belief I actually value feedback (don't tell them).

Code metadata is the extra information about the matched code and its surrounding context. You should use a combination of static analysis and AI here. For example, static analysis identifies all API routes based on decorators/keywords and AI summarizes them.

At a minimum, I need the AI generated description of the surrounding function block¹. I could also include more context about the code's functionality (for example, this is an API route that retrieves user's info from another microservice).

The Feedback Loop

You should refine the aforementioned data as time goes by. While it is tempting to add the false positives to per-rule context, your first line of defense is tweaking your SAST rule to filter these out. That is not always possible so some false positives will eventually end up in the context.

A function that was misidentified as an API route should refine the system (prompt + SAST as we discussed above) that generates the code metadata. It will most likely work result in a modified prompt.

But enough about the data, I want to focus on the actual format here.

Where Does the Soda Data Go?²

I needed to analyze the SARIF structure to find suitable locations for this info. I've written a good chunk of code for processing SARIF output in Go and Rust and even did some fun Semgrep experiments. This was a chance to look at other parts of the format.

Rule Context

The runs > tool > rules section is perfect for the rule context. It has a list of all rules executed by the tool. According to section 3.19.23 rules property of the specification, it can have one or more reportingDescriptors.

I will be using an example from running Marco Ivaldi's (0xdea) Semgrep rules against OWASP Juice Shop. I've removed some parts to make things easier to read. I will look at the c.command-injection rule.

{
  "runs": [
    {
      "tool": {
        "driver": {
          "rules": [
            {
              "fullDescription": {
                "text": "The program invokes a potentially dangerous function ..."
              },
              "help": {
                "markdown": "The program invokes ...",
                "text": "The program invokes ..."
              },
              "id": "semgrep-rules.c.raptor-command-injection",
              "name": "semgrep-rules.c.raptor-command-injection",
              "properties": {
                "precision": "very-high",
                "tags": [
                  "HIGH CONFIDENCE"
                ]
              },
              "shortDescription": {
                "text": "Semgrep Finding: semgrep-rules.c.raptor-command-injection"
              }
            }
            // removed

The help property is tempting. It's a 3.12 multiformatMessageString object with two keys: text and markdown. Semgrep populates the text portion with the rule message and the markdown section has the rule message + the references (maybe more?). This is not a good choice, because it will be overwritten by Semgrep and probably other tools.

I decided to use 3.8 Property Bags instead. The format defines them as "an unordered set of properties with arbitrary names." More importantly, they can be part of any tag:

every object defined in this document MAY contain a property named properties whose value is a property bag. This allows SARIF producers to include information about each object that is not explicitly specified in the SARIF format.

We will use camelCase keys to remain compliant with the specification:

The components of the property names SHOULD be camelCase strings ...

Semgrep has populated the property bag in our example with some data. I will add the rule context there.

{
  "runs": [
    {
      "tool": {
        "driver": {
          "rules": [
            {
              // removed
              "id": "semgrep-rules.c.raptor-command-injection",
              "name": "semgrep-rules.c.raptor-command-injection",
              "properties": {
                "aiPrompt": "...", // ZZZ: triagePrompt?
                "codeContext": "...", // ZZZ: need better name
              },
            }
            // removed

Code Context

The code context should be part of each finding. The findings are 3.27 result objects and look like:

{
  "runs": [
    {
      "results": [
        {
          "locations": [
            {
              "physicalLocation": {
                "artifactLocation": {
                  "uri": "juice-shop/.eslintrc.js",
                  "uriBaseId": "%SRCROOT%"
                },
                "region": {
                  "endColumn": 17,
                  "endLine": 37,
                  "snippet": {
                    "text": "// FIXME warnings below this line need to ..."
                  },
                  "startColumn": 12,
                  "startLine": 37
                }
              }
            }
          ],
          "message": {
            "text": "The code contains comments ..."
          },
          "properties": {},
          "ruleId": "semgrep-rules.generic.raptor-bad-words"
        },
        // removed

Note the snippet > text key with the value of the captured code. So much for not having sensitive info in the SARIF file 😜.

This object also supports a property bag that we can reuse:

{
  "runs": [
    {
      "results": [
        {
          // removed
          "properties": {
            "code": "_gasp_",
            "codeMetadata": "..."
          },
          "ruleId": "semgrep-rules.generic.raptor-bad-words"
        },
        // removed

When Do I Modify the SARIF File?

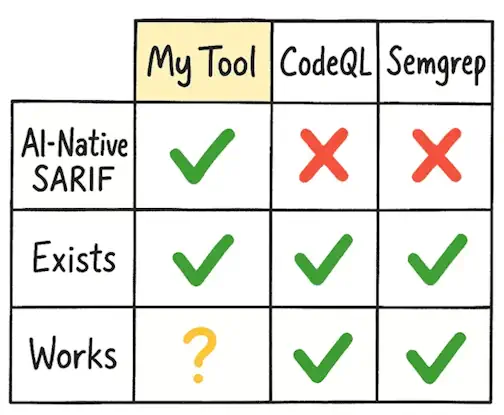

Ideally static analysis tools should do it. I've modified my toy static analysis tool to generate these new SARIF files. A unique feature according to this chart.

Accepting funding at 1 billion valuation!

It's easy to process rule context data. Create the prompt and the code samples for each rule (I use Semgrep tests) and store them by rule ID in a database. Then use the rule ID in the SARIF file to retrieve them.

Code context matching sounds much harder but it's not. Store the code context by "function" or "file" along with the code address (file path and function offset) in the database. Use the location and file path of each finding to match which file and function contain the match. To make things easier, especially in the beginning of your AI journey, don't worry about functions. Just generate and pass the code and context of the entire file to AI and let it do the heavy lifting.

The implementation is pretty simple. I wrote it by hand and without LLMs. It didn't even need library support. I encourage you to do the same to exercise your coding muscles. It's just parsing JSON and adding data to the properties key of specific items.

Just as I was finalizing the blog, LinkedIn published an article about their SAST pipeline. They mention a "SARIF enrichment" step.

We enrich SARIF alerts with additional metadata and remediation information specific to LinkedIn’s environment.

This is inline with my idea. I like the name "SARIF enrichment."

Where Does the Data Come From?

That is the million dollar question. The secret sauce or better yet, the so-called "Potter's Puff." What's that? It's my transliteration of the Persian idiom فوت کوزه‌ گری.

In ancient times an apprentice studied under a master potter. The apprentice left the master after thinking they had learned it all. But their pottery came out ruined with muddy colors. Turns out dust would accumulate on the pottery so the master would blow on each piece before firing it in the kiln.

No, not like that!

Tired: Secret sauce. Pedestrian and overused. Probably LLM generated.
Wired: Potter's Puff. Unique and exquisite. 100% organic.

So no one is going to give away the magic. Least of all me, I am very expensive financially and emotionally, just ask my boss. Jokes aside, I am still experimenting here. Static analysis is not my main job and I do this on the side so I cannot compete with actual companies. Still I've made some progress like reusing Semgrep tests and I have some fun ideas for automagically generating tailored prompts, too.

What Did We Learn Here Today?

The article suggests including the data needed for AI triage in the SARIF file. I proposed adding two types of data: per rule and per finding. I identified practical locations in the SARIF format for them. I also discussed some ways to generate this data, but my experiments are still ongoing. And last but not least, we learned a new idiom to differentiate our writing from AI slop.

I am very curious to connect with others in this field and learn what they are doing and finally, whether this is a path worth pursuing. Please reach out, you know where to find me.
